11 Nov 2019 - Michael H. Scott


I recently found two Zip disks in my office. They were the next big thing for about 15 minutes in the late 1990s and early 2000s.

I then got my hands on an external Zip drive and was able to offload the disks’ contents. One disk has lecture notes and assignments from a few graduate courses I took. Those materials will come in handy the next time I teach finite elements or computational mechanics.

The other disk has the OpenSees source code from 2001 and a version 1.2 Windows executable.

Putting items on a Zip disk was one of many common pre-cloud behaviors that are now considered odd. So, examining the disks is like studying the artifacts of an ancient culture. What follows is my archaeological report.


I double-clicked the version 1.2 Windows executable, not expecting it to run, just hoping that it wouldn’t corrupt my computer. Nothing terrible happened, only a system error regarding Tcl 8.3.

OpenSees version 1.2.0

Today, OpenSees is on version 3.1.0 and it requires Tcl 8.6, which this Python3 module is going to swallow whole.

The source code snapshot is far more intriguing. When OpenSees moved to GitHub, the SVN logs were brought along, but only back to 2011. I’m not sure why the logs stopped there, but it means the 2001 source code pre-dates written history.

I could go through all the folders and catalog the differences between then and now, but that would be incredibly boring. Instead, I’ll focus on the two directories, SRC/element and SRC/material/uniaxial, where most contributions from the OpenSees community have landed over the years.

Here are the subdirectories in the SRC/element directory of 2001.

OpenSees element subdirectories in 2001

There was, more or less, one element class in each subdirectory.

Here are the subdirectories in the SRC/element directory today.

OpenSees element subdirectories in 2019

Many of these subdirectories, e.g., UWelements and PFEMelement, contain multiple element classes. Plus, some of the subdirectories from 2001 have new additions, e.g., the thermal formulations in dispBeamColumn.

Turning to the SRC/material/uniaxial directory, here are its subdirectories and cpp files from 2001.

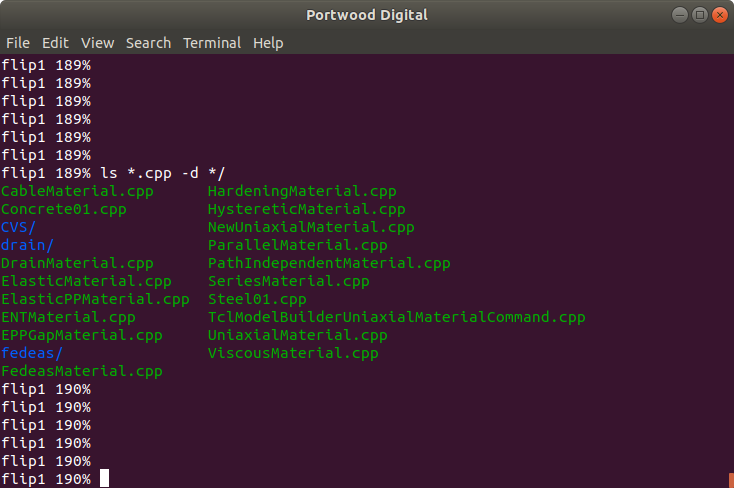

OpenSees uniaxial material subdirectories in 2001

Woah! There’s only Steel01 and Concrete01, and wrappers around FORTRAN code for Drain and Fedeas material models. Did the users of OpenSees version 1.2 belong to a primitive hunter-gatherer society? How did they complete Ph.D.s and earn tenure with such basic tools?

Compare that dearth of models to what’s in the SRC/material/uniaxial directory today.

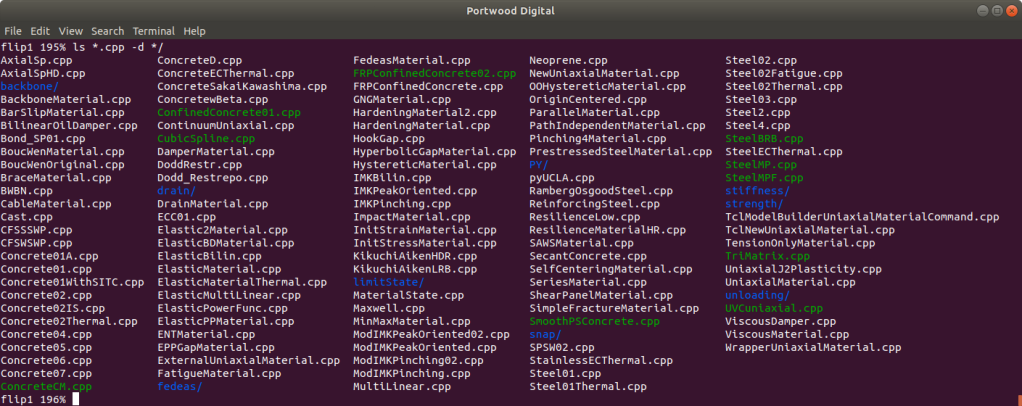

OpenSees uniaxial material subdirectories in 2019

Note that I had to change my terminal window from 80x24 to 155x28 to make everything fit for the screenshot. There are now several concrete and steel and IMK models, and lots of other stuff–a grocery store on every corner. But you still need to hunt and gather to earn tenure.


If GitHub suddenly disappeared, somehow taking everyone’s local repos away with it, we could reconstruct OpenSees from this Zip disk. If that did happen, what should we do differently? Is there a Lougle opportunity here? Let me know your thoughts in the comments section.
