Centripetal acceleration! Get a mass revolving in a plane about a fixed point and a force directed radially (toward the center of revolution) is required to keep the mass from flying off tangentially. Surely, you’ve spun a tethered object overhead like a lasso. Or you’ve seen a centrifuge, either in person or in Spies Like Us.

But how do you pull off centripetal acceleration in OpenSees?

For the tether, you can use a corotational truss element, whose geometry is exact for large displacements.

Then, set the mass in motion with an initial velocity.

import openseespy.opensees as ops

r = 100
E = 29000
A = 0.1

g = 386.4
W = 0.1
m = W/g

ops.wipe()
ops.model('basic','-ndm',2,'-ndf',2)

ops.node(1,0,0); ops.fix(1,1,1)
ops.node(2,r,0); ops.mass(2,m,m)

ops.uniaxialMaterial('Elastic',1,E)
ops.element('CorotTruss',1,1,2,A,1)

a = 2*g
v = (a*r)**0.5

ops.setNodeVel(2,2,v,'-commit')

ops.analysis('Transient','-noWarnings')

Nrev = 2 # Number of revolutions
Tmax = Nrev*(2*3.14159*r)/v
dt = 0.001
Nsteps = int(Tmax/dt)

ops.analyze(Nsteps,dt)

The radial acceleration of the mass is \(a=v^2/r\). In the script above, the initial velocity is back calculated for the mass to pull 2g acceleration. No matter what initial velocity you use, the axial force in the corotational truss element should be \(mv^2/r\).

The axial force response history for the corotational truss element is shown below.

Axial force response history

A few things to note:

The axial force is positive, which makes physical sense. When you spin a tethered object overhead, the tether is definitely in tension.
The velocity is applied suddenly with no rise time, so the axial force oscillates about the expected \(mv^2/r\) solution, just like SDF response to a step function. You can ramp up the velocity, but I chose not to do so for this analysis.
The frequency of axial force oscillation is a function of the object mass and the axial stiffness of the element.
The vibration is undamped, but you can add damping, preferably to the material or element, within the corotating frame of reference. Modal and Rayleigh damping may not work as expected for this type of analysis.

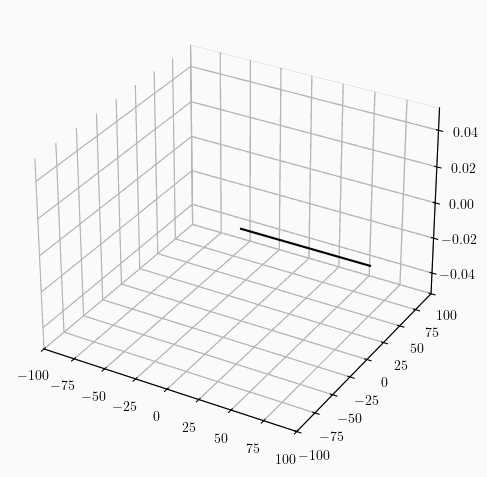

An animation of the analysis is shown below:
