The Mechanically Separated Wall
Original Post - 04 May 2025 - Michael H. Scott
Visit Structural Analysis Is Simple on Substack.
The MVLEM element (and its SFI-MVLEM and E-SFI-MVLEM cousins) has a curious 3D implementation in OpenSees. In plane, the element is a two node link with a fiber section and some rigid beams while out of plane the element is a linear-elastic plate.
The mechanics of the in-plane response are separate from the mechanics of the out-of-plane response. In a way, the MVLEM elements are like processed food, more chicken nuggets than whole chicken.
The rationale behind this paste of mechanically separated chicken is logical. In a building, some other system will resist lateral loads in the out-of-plane direction. And stiffness attracts load, so the wall element won’t see much out-of-plane loading.
But if the wall element has been damaged due to in-plane loading, the out-of-plane response would be affected too. And vice versa, out-of-plane nonlinearity will affect the in-plane response.
To demonstrate the point, take a single MVLEM 3D element with
Concrete01 and Steel01 fibers and first load and unload the element
in-plane, then load the element out-of-plane. The details of the wall
(reinforcing pattern, flexure or shear dominated, etc.) are not
important for this demonstration.

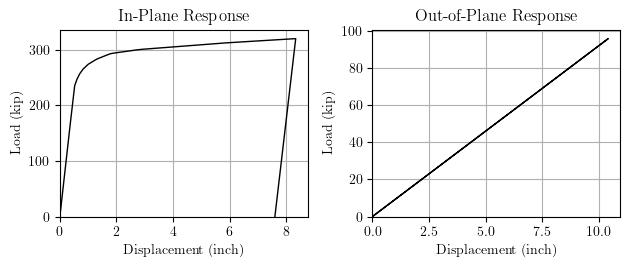

The in-plane load-displacement response and subsequent out-of-plane load-displacement response are shown below. The MVLEM element yields in-plane but responds linear-elastically out-of-plane.

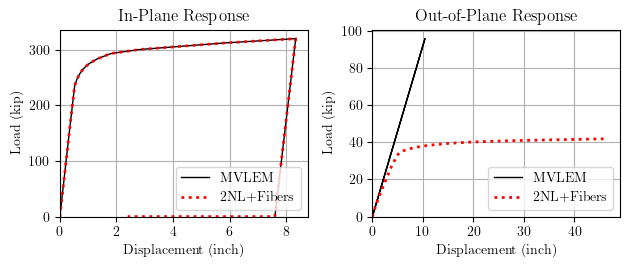

Now if we use a twoNodeLinkSection element with a fiber section
discretized in two directions (instead of only one direction like the
MVLEM element), a more mechanically unified wall model, we see the
out-of-plane response is affected by prior yielding in the in-plane
direction.
The MVLEM element (and SFI-MVLEM and E-SFI-MVLEM) using an elastic plate in the out-of-plane direction is an unrealistic backstop that could lead to unconservative estimates of the lateral load carrying capacity of a building model.
After Jamie Oliver shows how the nuggets are made, the kids still want to eat.
