Minimal Random Process Example

Original Post - 28 Sep 2025 - Michael H. Scott

I know just enough about random vibrations and ground motions to be dangerous. I would like to become less of a liability on these topics, so bear with me on this post.

OpenSees has two time series for random processes, both implemented by Terje Haukaas. A DiscretizedRandomProcess uses random variables to construct a time series from filtered unit impulse response functions and a SimulatedRandomProcess passes randomly generated numbers through a spectrum object that encapsulates a power spectral density (PSD) function.

This post will focus on constructing a SimulatedRandomProcess in OpenSees, for which the available PSD functions are narrowband, jonswap, and points.

The narrowband spectrum has constant spectral density over a specified frequency range. For example, to define a constant PSD of 0.001 m²/s³ over a frequency range of 0.5 to 20 Hz, we use the following spectrum command.

import openseespy.opensees as ops
from math import pi

wmin = 0.5*(2*pi) # rad/sec
wmax = 20*(2*pi)  # rad/sec
Sd = 0.001        # m^2/sec^3

ops.spectrum(1,'narrowband',wmin,wmax,Sd)

Yeah, the tag comes before the type.

The jonswap spectrum implements an empirical wave energy relationshp from the Joint North Sea Wave Project (JONSWAP). It’s kinda funny that the jonswap spectrum was OpenSees’s first homage to waves, long before the fluid-structure interaction capabilties of the PFEM came on board.

The points spectrum is based on user input (frequency, PSD) pairs. Until it is implemented directly in OpenSees, the points spectrum is the only approach for the Kanai-Tajimi spectrum or any other spectrum besides JONSWAP. No big deal.

Anyway, after defining a spectrum, we can define a SimulatedRandomProcess time series. In addition to the spectrum tag, we pass the mean value for the process (usually zero when generating ground motions) and the number of sampling points for the PSD function. The sampling points are uniformly spaced across the frequency range of the spectrum.

spectrumTag = 1
mean = 0.0
Nfreq = 200

ops.timeSeries('SimulatedRandomProcess',1,spectrumTag,mean,Nfreq)

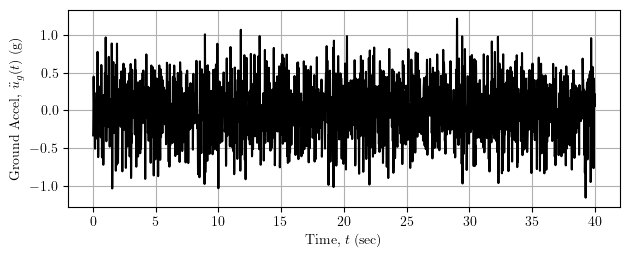

The synthetic ground acceleration record created from the foregoing narrowband spectrum and SimulatedRandomProecess time series commands is shown below.

It doesn’t look like it, but the time series is the summation of 200 randomly generated sine waves with frequencies uniformly distributed between 0.5 and 20 Hz. White noise.

Then, we pass the time series to a UniformExcitation load pattern (or any other load pattern such as MultiSupport or Plain if you are so inclined). Putting it all together in an SDF analysis, we have the following.

ops.wipe()
ops.model('basic','-ndm',1,'-ndf',1)

m = 1
ops.node(1,0); ops.fix(1,1)
ops.node(2,0); ops.mass(2,m)

wn = 10.0 # Or whatever
zeta = 0.03 # Or whatever
k = m*wn**2
c = 2*m*wn*zeta
ops.uniaxialMaterial('Elastic',1,k,c)

ops.element('zeroLength',1,1,2,'-mat',1,'-dir',1)

# Defined above
ops.spectrum(1,'narrowband',wmin,wmax,Sd)
ops.timeSeries('SimulatedRandomProcess',1,spectrumTag,mean,Nfreq)

ops.pattern('UniformExcitation',1,1,'-accel',1)

ops.analysis('Transient','-noWarnings')

Tfinal = 40
dt = 0.01
Nsteps = int(Tfinal/dt)

for i in range(Nsteps):
    ops.analyze(1,dt)

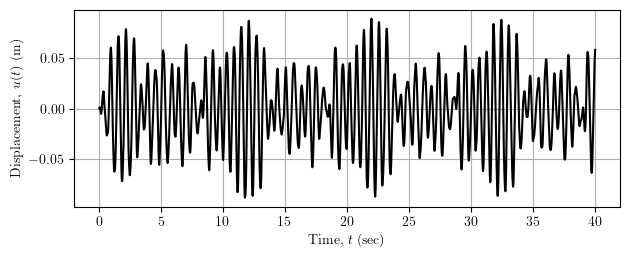

The displacement response history for an SDF system at natural circular frequency 10 rad/sec and 3% damping is shown below.

The response follows the periodicity of the synthetic excitation.

The SDF response spectrum produced by the same SimulatedRandomProcess time series is shown below for 3% damping.

Outside the 0.5-20 Hz frequency range used to construct the synthetic excitation, the spectral acceleration falls off rapidly to zero for low frequencies and to the PGA for high frequencies.

If you re-create the analysis shown in this post, your results will be different because the SimulatedRandomProcess time series uses a random number generator.

For more details on the random process capabilities in OpenSees, check out PEER report 2003/14 by Haukaas and Der Kiureghian.
