Linear Systems

The following matrices from the SuiteSparse Matrix Collection are solved as linear systems in OpenSees using the BYOM approach with one static analysis step for a unit load at the first DOF, linear algorithm.

The number of equations ranges from 1000 to 10000.

Times are reported for ops.analyze(1) on the standard GitHub ubuntu-latest runner allocated to private repositories.

bcsstk08

N = 1074, nnz = 12960

system UmfPack - 0.03563117980957031 sec, u1 = 7.275713074175342e-07

system SparseGeneral - 0.07787036895751953 sec, u1 = 7.275713074175342e-07

system BandGeneral - 0.37111520767211914 sec, u1 = 7.275713074175342e-07

system FullGeneral - 0.2820315361022949 sec, u1 = 7.275713074175342e-07

system BandSPD - 0.08673691749572754 sec, u1 = 7.275713074175342e-07

system ProfileSPD - 0.13505315780639648 sec, u1 = 7.275713074175341e-07

bcsstk09

N = 1083, nnz = 18437

system UmfPack - 0.028211593627929688 sec, u1 = 4.2971981177034075e-08

system SparseGeneral - 0.026657819747924805 sec, u1 = 4.297198117703407e-08

system BandGeneral - 0.02237868309020996 sec, u1 = 4.2971981177034075e-08

system FullGeneral - 0.2894129753112793 sec, u1 = 4.2971981177034075e-08

system BandSPD - 0.023436784744262695 sec, u1 = 4.297198117703409e-08

system ProfileSPD - 0.026422977447509766 sec, u1 = 4.297198117703407e-08

bcsstk10

N = 1086, nnz = 22070

system UmfPack - 0.028415203094482422 sec, u1 = 8.766865219853213e-07

system SparseGeneral - 0.026541709899902344 sec, u1 = 8.766865219853216e-07

system BandGeneral - 0.025093793869018555 sec, u1 = 8.766865219853216e-07

system FullGeneral - 0.2958405017852783 sec, u1 = 8.766865219853216e-07

system BandSPD - 0.030347824096679688 sec, u1 = 8.766865219853207e-07

system ProfileSPD - 0.030983686447143555 sec, u1 = 8.766865219853216e-07

bcsstk11

N = 1473, nnz = 34241

system UmfPack - 0.06269478797912598 sec, u1 = 0.00024190749899749973

system SparseGeneral - 0.055783748626708984 sec, u1 = 0.00024190749899748865

system BandGeneral - 0.3582916259765625 sec, u1 = 0.00024190749899754608

system FullGeneral - 0.7222471237182617 sec, u1 = 0.00024190749899754608

system BandSPD - 0.18873190879821777 sec, u1 = 0.00024190749899748813

system ProfileSPD - 0.07676053047180176 sec, u1 = 0.00024190749899750114

bcsstk12

N = 1473, nnz = 34241

system UmfPack - 0.052324533462524414 sec, u1 = 0.00024190749899749973

system SparseGeneral - 0.052694082260131836 sec, u1 = 0.00024190749899748865

system BandGeneral - 0.35531067848205566 sec, u1 = 0.00024190749899754608

system FullGeneral - 0.7185993194580078 sec, u1 = 0.00024190749899754608

system BandSPD - 0.19420981407165527 sec, u1 = 0.00024190749899748813

system ProfileSPD - 0.07381868362426758 sec, u1 = 0.00024190749899750114

bcsstk14

N = 1806, nnz = 63454

system UmfPack - 0.1290147304534912 sec, u1 = 1.6287425345415307e-06

system SparseGeneral - 0.11703205108642578 sec, u1 = 1.6287425345415296e-06

system BandGeneral - 0.15332770347595215 sec, u1 = 1.6287425345415288e-06

system FullGeneral - 1.823822021484375 sec, u1 = 1.6287425345415288e-06

system BandSPD - 0.1069037914276123 sec, u1 = 1.6287425345415296e-06

system ProfileSPD - 0.1354684829711914 sec, u1 = 1.6287425345415305e-06

bcsstk15

N = 3948, nnz = 117816

system UmfPack - 0.3811635971069336 sec, u1 = 4.875391894842036e-07

system SparseGeneral - 0.36031341552734375 sec, u1 = 4.875391894842031e-07

system BandGeneral - 0.9660811424255371 sec, u1 = 4.875391894842062e-07

system FullGeneral - 13.23160719871521 sec, u1 = 4.875391894842062e-07

system BandSPD - 0.39704442024230957 sec, u1 = 4.875391894842039e-07

system ProfileSPD - 0.6903510093688965 sec, u1 = 4.875391894841562e-07

bcsstk16

N = 4884, nnz = 290378

system UmfPack - 0.7139098644256592 sec, u1 = 4.619817624103447e-09

system SparseGeneral - 0.5843279361724854 sec, u1 = 4.619817624103447e-09

system BandGeneral - 0.5210058689117432 sec, u1 = 4.619817624103447e-09

system FullGeneral - 25.09198522567749 sec, u1 = 4.619817624103447e-09

system BandSPD - 0.475679874420166 sec, u1 = 4.619817624103448e-09

system ProfileSPD - 0.5796732902526855 sec, u1 = 4.619817624103446e-09

bcsstk21

N = 3600, nnz = 26600

system UmfPack - 0.05742907524108887 sec, u1 = 2.8159904078011028e-08

system SparseGeneral - 0.050664424896240234 sec, u1 = 2.815990407801102e-08

system BandGeneral - 0.08839821815490723 sec, u1 = 2.8159904078011014e-08

system FullGeneral - 9.888585567474365 sec, u1 = 2.8159904078011014e-08

system BandSPD - 0.05851125717163086 sec, u1 = 2.815990407801102e-08

system ProfileSPD - 0.13119792938232422 sec, u1 = 2.8159904078011014e-08

bcsstk23

N = 3134, nnz = 45178

system UmfPack - 0.20511674880981445 sec, u1 = 8.686519897025955e-07

system SparseGeneral - 0.22656011581420898 sec, u1 = 8.686519893955894e-07

system BandGeneral - 0.7121648788452148 sec, u1 = 8.686519897107951e-07

system FullGeneral - 6.578254222869873 sec, u1 = 8.686519897107951e-07

system BandSPD - 0.27442073822021484 sec, u1 = 8.686519898324676e-07

system ProfileSPD - 0.8047702312469482 sec, u1 = 8.686519889715192e-07

bcsstk24

N = 3562, nnz = 159910

system UmfPack - 0.29166245460510254 sec, u1 = 1.6459739416042598e-06

system SparseGeneral - 0.3144681453704834 sec, u1 = 1.6459739417052282e-06

system BandGeneral - 10.028940916061401 sec, u1 = 1.645973941625472e-06

system FullGeneral - 9.802362203598022 sec, u1 = 1.645973941625472e-06

system BandSPD - 5.748080253601074 sec, u1 = 1.645973941706217e-06

system ProfileSPD - 2.787454128265381 sec, u1 = 1.6459739414966747e-06

bcsstk26

N = 1922, nnz = 30336

system UmfPack - 0.05731511116027832 sec, u1 = 1.8093484643934876e-07

system SparseGeneral - 0.05731964111328125 sec, u1 = 1.8093484643934725e-07

system BandGeneral - 0.15668296813964844 sec, u1 = 1.8093484643935662e-07

system FullGeneral - 1.552872896194458 sec, u1 = 1.8093484643935662e-07

system BandSPD - 0.0811924934387207 sec, u1 = 1.8093484643935127e-07

system ProfileSPD - 0.09354496002197266 sec, u1 = 1.8093484643934325e-07

bcsstk27

N = 1224, nnz = 56126

system UmfPack - 0.08850264549255371 sec, u1 = 0.0004212735528112732

system SparseGeneral - 0.09521293640136719 sec, u1 = 0.0004212735528112739

system BandGeneral - 0.08668184280395508 sec, u1 = 0.0004212735528112735

system FullGeneral - 0.49247145652770996 sec, u1 = 0.0004212735528112735

system BandSPD - 0.0809946060180664 sec, u1 = 0.0004212735528112731

system ProfileSPD - 0.08716893196105957 sec, u1 = 0.00042127355281127327

bcsstk28

N = 4410, nnz = 219024

system UmfPack - 0.40409278869628906 sec, u1 = 0.00017249970503173463

system SparseGeneral - 0.3860912322998047 sec, u1 = 0.00017249970503241125

system BandGeneral - 1.2020635604858398 sec, u1 = 0.0001724997050324059

system FullGeneral - 18.442071199417114 sec, u1 = 0.0001724997050324059

system BandSPD - 0.656973123550415 sec, u1 = 0.00017249970503183757

system ProfileSPD - 0.6081840991973877 sec, u1 = 0.00017249970503226193

bcsstm12

N = 1473, nnz = 19659

system UmfPack - 0.02584528923034668 sec, u1 = 25591.72833063559

system SparseGeneral - 0.0241549015045166 sec, u1 = 25591.728330635025

system BandGeneral - 0.32883596420288086 sec, u1 = 25591.72833063499

system FullGeneral - 0.6886153221130371 sec, u1 = 25591.72833063499

system BandSPD - 0.16030406951904297 sec, u1 = 25591.728330633585

system ProfileSPD - 0.049521446228027344 sec, u1 = 25591.72833063483

bcsstk38

N = 8032, nnz = 355460

system UmfPack - 0.7742214202880859 sec, u1 = 0.002751717425354538

system SparseGeneral - 0.8230843544006348 sec, u1 = 0.002751717425351935

system BandGeneral - 97.71432781219482 sec, u1 = 0.0027517174253524185

system FullGeneral - 110.23077249526978 sec, u1 = 0.0027517174253524185

system BandSPD - 55.03858208656311 sec, u1 = 0.002751717425354355

system ProfileSPD - 1.3754918575286865 sec, u1 = 0.0027517174253529663

msc01050

N = 1050, nnz = 26198

system UmfPack - 0.04232501983642578 sec, u1 = 0.0025127200010601545

system SparseGeneral - 0.04728889465332031 sec, u1 = 0.002512720001058422

system BandGeneral - 0.2440812587738037 sec, u1 = 0.0025127200010526063

system FullGeneral - 0.277956485748291 sec, u1 = 0.0025127200010526063

system BandSPD - 0.14560365676879883 sec, u1 = 0.0025127200010575646

system ProfileSPD - 0.2934410572052002 sec, u1 = 0.0025127200010530127

msc01440

N = 1440, nnz = 44998

system UmfPack - 0.08559441566467285 sec, u1 = 0.3825743982091773

system SparseGeneral - 0.08184218406677246 sec, u1 = 0.3825743982091128

system BandGeneral - 0.6941962242126465 sec, u1 = 0.3825743982093484

system FullGeneral - 0.7111818790435791 sec, u1 = 0.3825743982093484

system BandSPD - 0.40741705894470215 sec, u1 = 0.38257439820923916

system ProfileSPD - 1.0088844299316406 sec, u1 = 0.38257439820919914

msc04515

N = 4515, nnz = 97707

system UmfPack - 0.1741340160369873 sec, u1 = 2.4585387370394037e-08

system SparseGeneral - 0.18130278587341309 sec, u1 = 2.458538737039404e-08

system BandGeneral - 0.3086283206939697 sec, u1 = 2.458538737039404e-08

system FullGeneral - 19.58170795440674 sec, u1 = 2.458538737039404e-08

system BandSPD - 0.1957252025604248 sec, u1 = 2.4585387370394047e-08

system ProfileSPD - 0.35544610023498535 sec, u1 = 2.458538737039404e-08

nasa1824

N = 1824, nnz = 39208

system UmfPack - 0.06324338912963867 sec, u1 = 2.702239043840792e-05

system SparseGeneral - 0.06668543815612793 sec, u1 = 2.7022390438408207e-05

system BandGeneral - 0.1756906509399414 sec, u1 = 2.7022390438406845e-05

system FullGeneral - 1.3345472812652588 sec, u1 = 2.7022390438406845e-05

system BandSPD - 0.08065295219421387 sec, u1 = 2.702239043840832e-05

system ProfileSPD - 0.09349679946899414 sec, u1 = 2.7022390438407445e-05

nasa2146

N = 2146, nnz = 72250

system UmfPack - 0.11979198455810547 sec, u1 = 7.991197843827672e-07

system SparseGeneral - 0.12210416793823242 sec, u1 = 7.991197843827676e-07

system BandGeneral - 0.11909008026123047 sec, u1 = 7.991197843827693e-07

system FullGeneral - 2.1756041049957275 sec, u1 = 7.991197843827693e-07

system BandSPD - 0.1079554557800293 sec, u1 = 7.991197843827679e-07

system ProfileSPD - 0.12581539154052734 sec, u1 = 7.991197843827673e-07

nasa2910

N = 2910, nnz = 174296

system UmfPack - 0.29526495933532715 sec, u1 = 1.5558671803549697e-06

system SparseGeneral - 0.32650089263916016 sec, u1 = 1.5558671803549722e-06

system BandGeneral - 1.8683781623840332 sec, u1 = 1.555867180355174e-06

system FullGeneral - 5.469666004180908 sec, u1 = 1.555867180355174e-06

system BandSPD - 0.8195133209228516 sec, u1 = 1.5558671803550004e-06

system ProfileSPD - 0.45243334770202637 sec, u1 = 1.5558671803551234e-06

nasa4704

N = 4704, nnz = 104756

system UmfPack - 0.19863390922546387 sec, u1 = 3.249641262516914e-05

system SparseGeneral - 0.25552940368652344 sec, u1 = 3.249641262516667e-05

system BandGeneral - 0.9409866333007812 sec, u1 = 3.249641262516979e-05

system FullGeneral - 22.136971473693848 sec, u1 = 3.249641262516979e-05

system BandSPD - 0.39305806159973145 sec, u1 = 3.249641262516485e-05

system ProfileSPD - 0.5477108955383301 sec, u1 = 3.249641262512285e-05

sts4098

N = 4098, nnz = 72356

system UmfPack - 0.12675213813781738 sec, u1 = 1.5518185716931975e-05

system SparseGeneral - 0.2594313621520996 sec, u1 = 1.551818571693199e-05

system BandGeneral - 13.8082914352417 sec, u1 = 1.5518185716931965e-05

system FullGeneral - 14.73912787437439 sec, u1 = 1.5518185716931965e-05

system BandSPD - 7.735447406768799 sec, u1 = 1.551818571693198e-05

system ProfileSPD - 15.346245527267456 sec, u1 = 1.551818571693185e-05

Kuu

N = 7102, nnz = 340200

system UmfPack - 0.6631286144256592 sec, u1 = 1.30125707400389

system SparseGeneral - 0.6368894577026367 sec, u1 = 1.3012570740038887

system BandGeneral - 56.80193018913269 sec, u1 = 1.3012570740038243

system FullGeneral - 76.05207896232605 sec, u1 = 1.3012570740038243

system BandSPD - 33.179786920547485 sec, u1 = 1.3012570740039082

system ProfileSPD - 7.159310817718506 sec, u1 = 1.301257074003824

Muu

N = 7102, nnz = 170134

system UmfPack - 0.2941563129425049 sec, u1 = 42239.99999983405

system SparseGeneral - 0.30008983612060547 sec, u1 = 42239.99999983405

system BandGeneral - 56.420135498046875 sec, u1 = 42239.99999983404

system FullGeneral - 75.8189902305603 sec, u1 = 42239.99999983404

system BandSPD - 32.69135308265686 sec, u1 = 42239.99999983404

system ProfileSPD - 6.885836601257324 sec, u1 = 42239.999999834035

s1rmq4m1

N = 5489, nnz = 262411

system UmfPack - 0.5572669506072998 sec, u1 = 6.446003512374598e-05

system SparseGeneral - 0.5492849349975586 sec, u1 = 6.44600351237454e-05

system BandGeneral - 0.6600556373596191 sec, u1 = 6.446003512374911e-05

system FullGeneral - 35.351964473724365 sec, u1 = 6.446003512374911e-05

system BandSPD - 0.4485797882080078 sec, u1 = 6.446003512374563e-05

system ProfileSPD - 0.721505880355835 sec, u1 = 6.44600351237458e-05

s2rmq4m1

N = 5489, nnz = 263351

system UmfPack - 0.5906727313995361 sec, u1 = 0.0007792244878138386

system SparseGeneral - 0.5612070560455322 sec, u1 = 0.0007792244878139277

system BandGeneral - 0.674318790435791 sec, u1 = 0.0007792244878138687

system FullGeneral - 35.30761408805847 sec, u1 = 0.0007792244878138687

system BandSPD - 0.4408440589904785 sec, u1 = 0.0007792244878138331

system ProfileSPD - 0.7216372489929199 sec, u1 = 0.0007792244878138219

s3rmq4m1

N = 5489, nnz = 262943

system UmfPack - 0.5599784851074219 sec, u1 = 0.012659138966003044

system SparseGeneral - 0.5608117580413818 sec, u1 = 0.012659138966009306

system BandGeneral - 0.6712362766265869 sec, u1 = 0.012659138965998587

system FullGeneral - 35.28547120094299 sec, u1 = 0.012659138965998587

system BandSPD - 0.4490511417388916 sec, u1 = 0.012659138966002743

system ProfileSPD - 0.7232954502105713 sec, u1 = 0.01265913896600207

s1rmt3m1

N = 5489, nnz = 217651

system UmfPack - 0.40923047065734863 sec, u1 = 5.859654898297082e-05

system SparseGeneral - 0.43181538581848145 sec, u1 = 5.85965489829711e-05

system BandGeneral - 0.5972115993499756 sec, u1 = 5.8596548982973006e-05

system FullGeneral - 35.44639348983765 sec, u1 = 5.8596548982973006e-05

system BandSPD - 0.3825058937072754 sec, u1 = 5.8596548982971075e-05

system ProfileSPD - 0.6549334526062012 sec, u1 = 5.85965489829705e-05

s2rmt3m1

N = 5489, nnz = 217681

system UmfPack - 0.4084792137145996 sec, u1 = 0.0007201195744482113

system SparseGeneral - 0.42897629737854004 sec, u1 = 0.0007201195744480609

system BandGeneral - 0.5996429920196533 sec, u1 = 0.0007201195744480321

system FullGeneral - 35.30664253234863 sec, u1 = 0.0007201195744480321

system BandSPD - 0.3788776397705078 sec, u1 = 0.000720119574448221

system ProfileSPD - 0.6603238582611084 sec, u1 = 0.0007201195744481703

s3rmt3m1

N = 5489, nnz = 217669

system UmfPack - 0.429915189743042 sec, u1 = 0.01180238563103243

system SparseGeneral - 0.42795825004577637 sec, u1 = 0.011802385631029467

system BandGeneral - 0.5964388847351074 sec, u1 = 0.011802385630996592

system FullGeneral - 35.28812789916992 sec, u1 = 0.011802385630996592

system BandSPD - 0.38724350929260254 sec, u1 = 0.011802385631031833

system ProfileSPD - 0.6588988304138184 sec, u1 = 0.011802385631031987

s3rmt3m3

N = 5357, nnz = 207123

system UmfPack - 0.3942596912384033 sec, u1 = 0.01082296048551694

system SparseGeneral - 0.392153263092041 sec, u1 = 0.010822960485497274

system BandGeneral - 33.337387800216675 sec, u1 = 0.010822960485493404

system FullGeneral - 32.842469692230225 sec, u1 = 0.010822960485493404

system BandSPD - 19.30088710784912 sec, u1 = 0.010822960485517378

system ProfileSPD - 2.620643377304077 sec, u1 = 0.010822960485504124

plbuckle

N = 1282, nnz = 30644

system UmfPack - 0.04406857490539551 sec, u1 = 0.00011043913187162628

system SparseGeneral - 0.043064117431640625 sec, u1 = 0.00011043913187162625

system BandGeneral - 0.04873824119567871 sec, u1 = 0.0001104391318716263

system FullGeneral - 0.47908973693847656 sec, u1 = 0.0001104391318716263

system BandSPD - 0.04143118858337402 sec, u1 = 0.00011043913187162625

system ProfileSPD - 0.04702353477478027 sec, u1 = 0.00011043913187162627

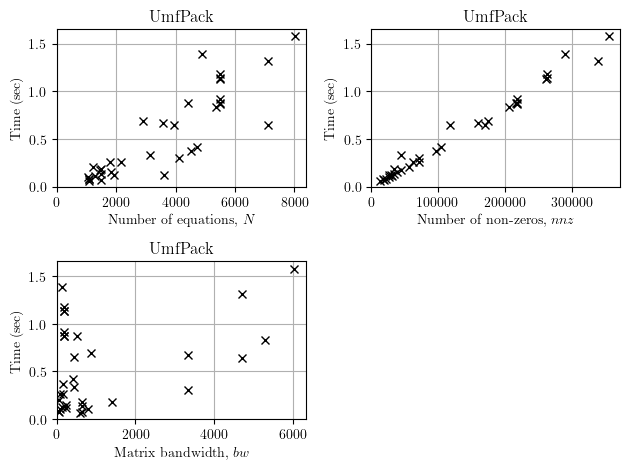

UmfPack

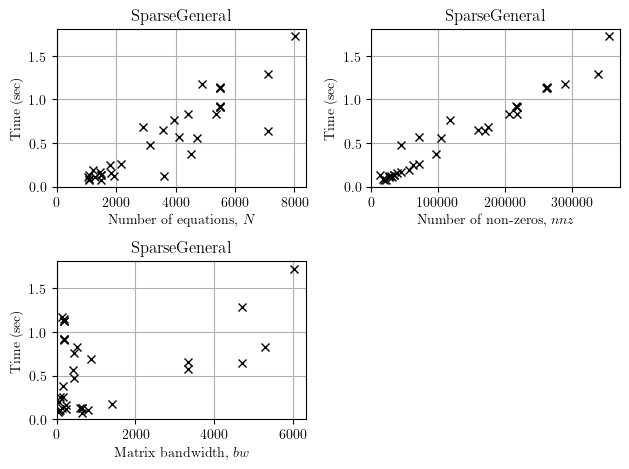

SparseGeneral

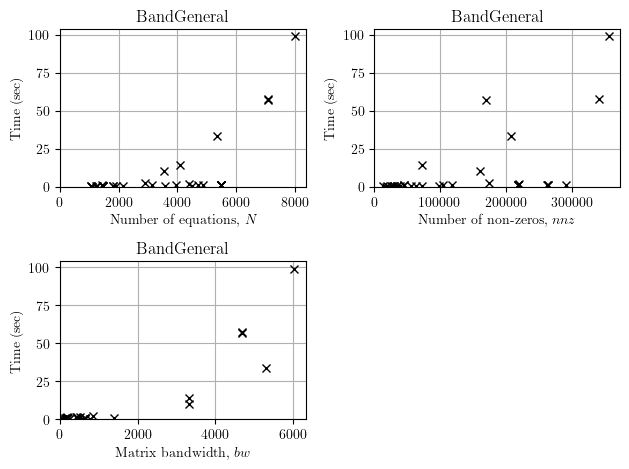

BandGeneral

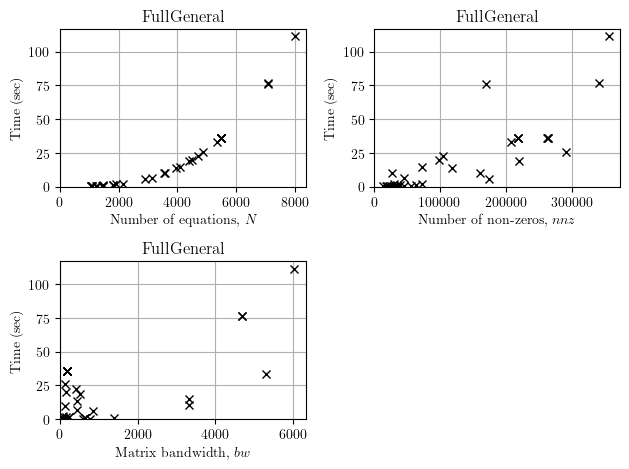

FullGeneral

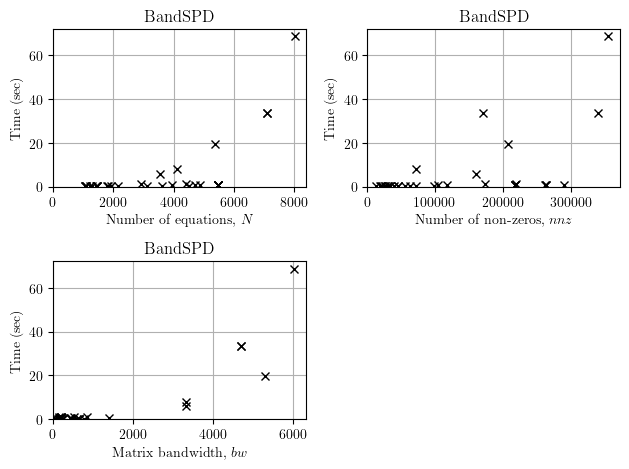

BandSPD

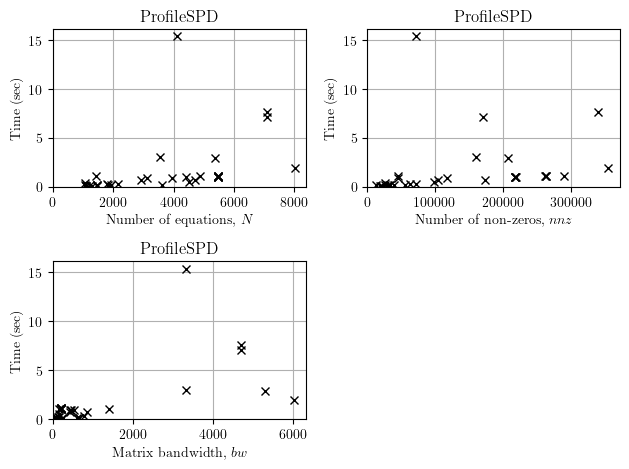

ProfileSPD



© 2019-2026 by Michael H. Scott. All rights reserved.

I work on problems related to modeling and nonlinear structural analysis. If these problems are relevant to a current professional project, feel free to reach out.
